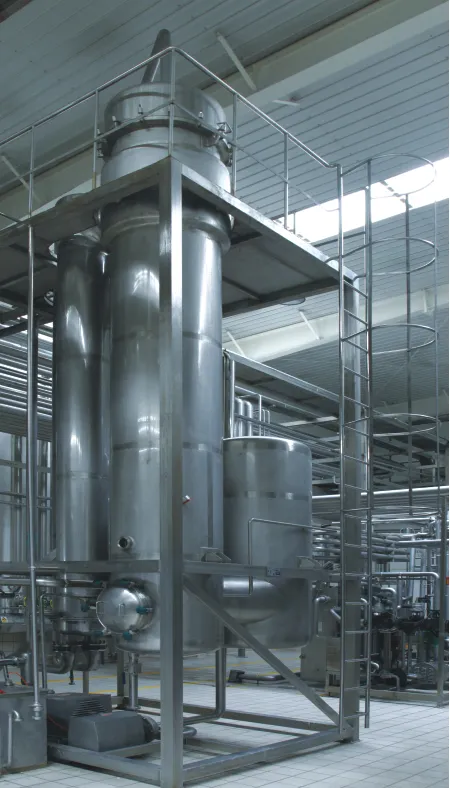

Single-effect falling film evaporator

    Single-effect falling film evaporator

    Description of products
    The falling film chamber uses a stainless steel integral frame structure with a low overall height, making it very suitable for installation and use in liquid milk workshops.Thermostatic pumps draw in secondary steam, saving energy. The equipment is equipped with cleaning nozzles and a CIP internal system, as well as a fully enclosed balance tank and acid/alkali tank, which can reduce pollution and acid/alkali volatilization.
  • kongsi：
    • Click To Consult

Structural features

The falling film chamber uses a stainless steel integral frame structure with a low overall height, making it very suitable for installation and use in liquid milk workshops.

Thermostatic pumps draw in secondary steam, saving energy.

The equipment is equipped with cleaning nozzles and a CIP internal system, as well as a fully enclosed balance tank and acid/alkali tank, which can reduce pollution and acid/alkali volatilization.

The automatic control box, equipped with a process flow simulation diagram, clearly displays the equipment's operating status and is easy to operate.

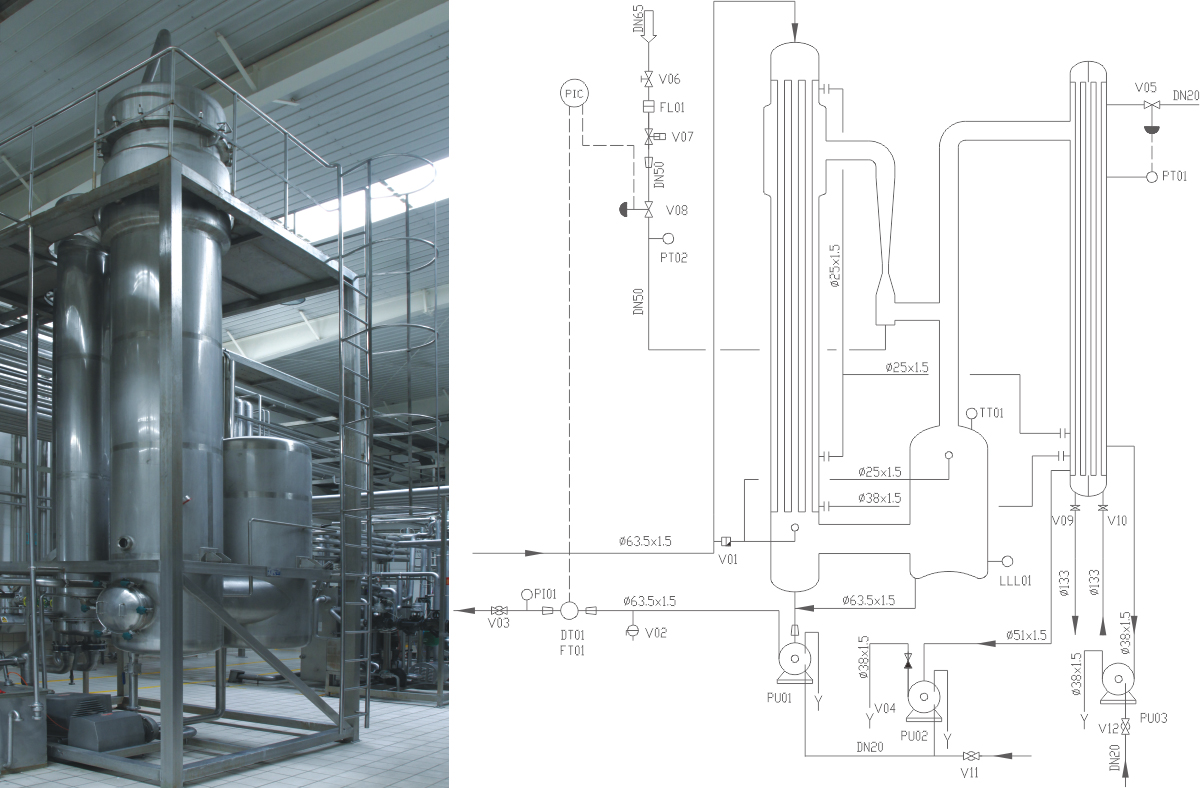

Process flow diagram of single-effect falling film evaporator

Single-effect falling film evaporator1.jpg

Main technical parameters

parameterTLDJ-500TLDJ-1000TLDJ-1500TLDJ-2000TLDJ-2500
Evaporation rate (kg/h)5001000150020002500
Steam pressure (MPa)<0.25
Vacuum degree (MPa)0.08
Concentration ratio1.2-1.3
Outward-opening multiple dimensions (length × width × height) (mm)2000×1000×30002200×1200×33002500×1300×35004600×2350×50005500×2800×5000
