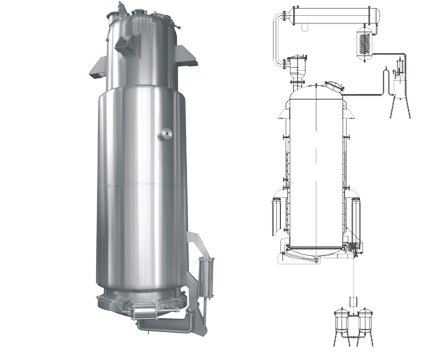

TQ‑Z(DTH) Straight‑Cylindrical Extraction Tank
Equipment Features
This equipment can be used for various processes in the traditional Chinese medicine, food, and chemical industries, including atmospheric pressure, low pressure, decoction, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction, and recovery of organic solvents.
The prominent features of the large and small conical extraction tanks are convenient slag discharge and excellent heating efficiency.
The tank body is equipped with CIP automatic rotating spray balls, temperature measuring ports, explosion‑proof sight glass, sight glasses, and quick‑opening feed ports, ensuring easy operation and compliance with GMP standards.
The inner shell is made of imported SUS304 stainless steel, the jacket uses fully enclosed aluminum silicate blanket insulation, and the outer shell is clad in matte SUS304 thin steel.
The complete equipment package includes: demister, condenser, cooler, oil‑water separator, filter, cylinder control console, and other accessories.

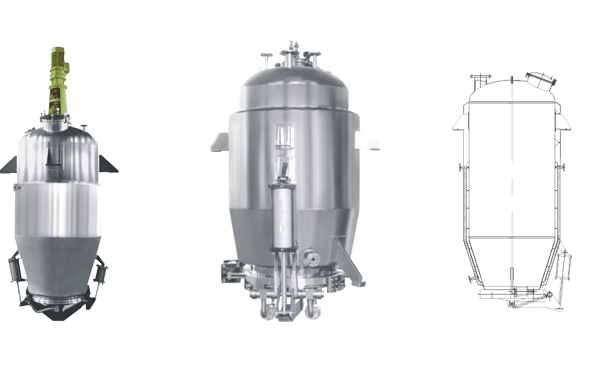

TQ‑A(DTH) Straight Cone Extraction Tank
Equipment Features
This equipment can be used for various processes in the traditional Chinese medicine, food, and chemical industries, including atmospheric pressure, low pressure, decoction, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction, and recovery of organic solvents.
The tank is equipped with CIP automatic rotating spray balls, temperature measuring ports, explosion‑proof sight glass, sight glasses, and quick‑opening feed ports to ensure easy operation and compliance with GMP standards.
The inner cylinder is made of imported SUS304 stainless steel, the jacket is insulated with fully enclosed aluminum silicate blankets, and the outer cylinder is finished with matte SUS304 thin steel plates.
The complete equipment package includes: demister, condenser, cooler, oil‑water separator, filter, cylinder control console, and other accessories.

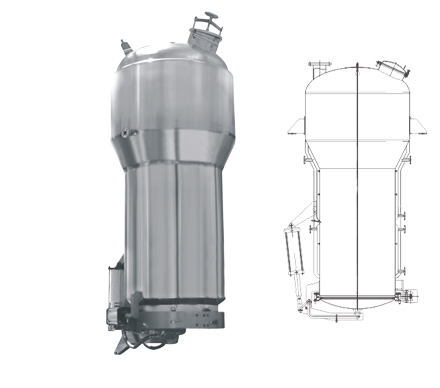

TQ‑M(DTH) Mushroom‑shaped Extraction Tank
Equipment Features
This equipment can be used for various processes in the traditional Chinese medicine, food, and chemical industries, including atmospheric pressure, low pressure, decoction, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction, and recovery of organic solvents.
The prominent features of the large and small conical extraction tanks are convenient slag discharge and excellent heating effect.
The tank body is equipped with CIP automatic rotating spray balls, temperature measuring holes, explosion‑proof sight glass, sight glasses, and quick‑opening feed ports, ensuring easy operation and compliance with GMP standards.
The inner cylinder is made of imported SUS304 stainless steel, the jacket uses fully enclosed aluminum silicate blanket insulation, and the outer cylinder is clad in matte SUS304 thin steel.
The complete equipment package includes: demister, condenser, cooler, oil‑water separator, filter, cylinder control console, and other accessories.

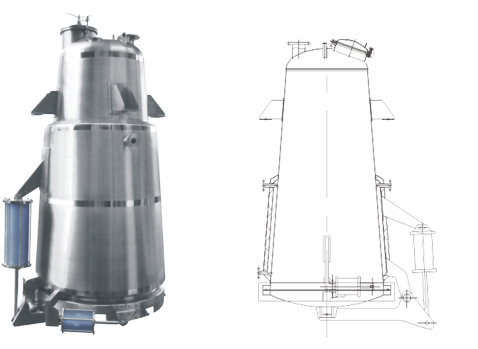

TQ‑B(DTH) Large and Small Conical Extraction Tanks
Equipment Features
This equipment can be used for various processes in the traditional Chinese medicine, food, and chemical industries, including atmospheric pressure, low pressure, decoction, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction, and recovery of organic solvents.
The prominent features of the large and small conical extraction tanks are convenient slag discharge and excellent heating effect.
The tank body is equipped with CIP automatic rotating spray balls, temperature measuring holes, explosion‑proof sight glass, sight glasses, and quick‑opening feed ports, ensuring easy operation and compliance with GMP standards.
The inner cylinder is made of imported SUS304 stainless steel, the jacket uses fully enclosed aluminum silicate blanket insulation, and the outer cylinder is clad in matte SUS304 thin steel.
The complete equipment package includes: demister, condenser, cooler, oil‑water separator, filter, cylinder control console, and other accessories.

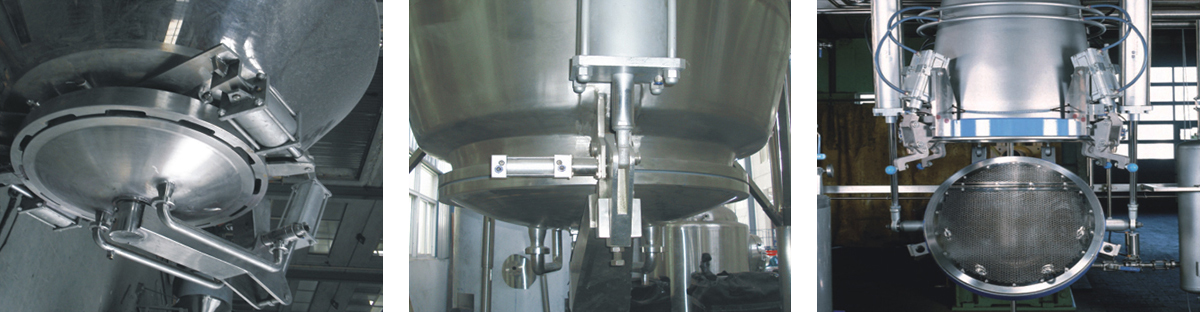

Rotary slag discharge gate
Fully automatic opening and closing of tank lid: It can realize high temperature and high pressure extraction. The rotating type can reach 3Ba or above, providing more choices for extraction process. It can also adapt to some special process requirements. It is safe and reliable, with sufficient safety protection functions and no leakage.
Quick‑opening slag discharge door
The tank lid opens and closes automatically using a cylinder control system, and is equipped with a safety device to prevent accidental operation, resulting in a high safety factor. Suitable for small to medium‑sized slag discharge ports.
Large‑diameter slag discharge gate
It can automatically open and close the tank lid; it can achieve high temperature and high pressure extraction, providing more options for the extraction process. This slag discharge door is suitable for the slag discharge method of large‑diameter inverted cone‑shaped extraction tanks, with a high safety factor.
Technical parameters
| Specifications and Models | TQ-0.5 | TQ-1 | TQ-2 | TQ-3 | TQ-4 | TQ-6 | TQ-8 | TQ-10 |
| Volume (L) | 600 | 1200 | 2300 | 3200 | 4300 | 6300 | 8500 | 11000 |
| Internal design pressure (MPa) | 0.09 | |||||||
| Sandwich design pressure (MPa) | 0.3 | |||||||
| Feed port diameter (mm) | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 500 |
| Heating area (m2) | 2.4 | 3 | 4.7 | 6.8 | 8 | 10 | 12 | 12 |
| Condensation area (m2) | 3 | 4 | 5.4 | 8 | 10 | 10 | 15 | 18 |
| Cooling area (m2) | 1 | 1 | 1 | 1 | 1 | 2.2 | 2.2 | 3 |
| Filter area (rrfl) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.3 |
| Slag discharge gate diameter (mm) | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1500 | 1600 |
| Steam consumption (kg/h) | 285 | 285 | 346 | 570 | 660 | 718 | 903 | 1140 |
| Water consumption (T/h) | 2.1 | 2.1 | 2.5 | 4.2 | 4.5 | 5.5 | 6.7 | 6.7 |
| Heating steam pipe inlet (mm) | 32 | 32 | 32 | 40 | 40 | 50 | 50 | 50 |
| Exhaust pipe opening (mm) | 100 | 100 | 100 | 125 | 125 | 150 | 150 | 150 |
| Cooling water pipe inlet (mm) | 40 | 40 | 40 | 50 | 50 | 50 | 65 | 70 |
| Motor power (KW) | 2.2 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Stirring speed (f/min) | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
