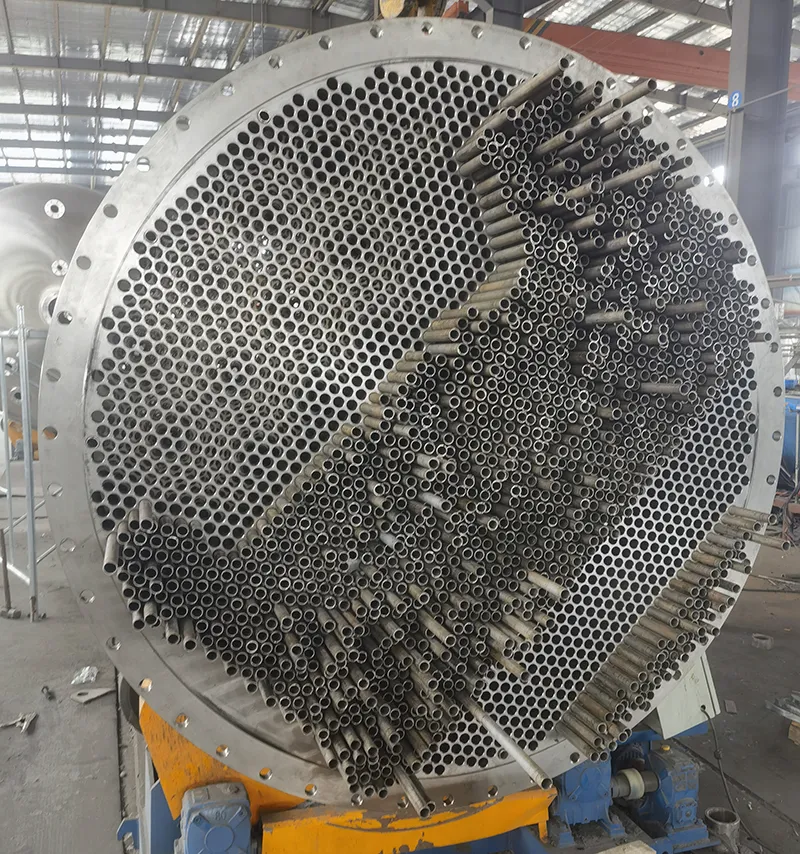

A tubular heat exchanger is a closed heat exchanger with tubes of different quantities and specifications arranged inside the cylinder to form different heat‑exchange areas. Media‑contact parts are made of SUS304 stainless steel with stable material performance. This heat exchanger features a simple structure, nice appearance, no dead corners and easy cleaning, complying with GMP requirements. It is widely used in pharmaceutical and chemical industries for steam condensation as well as heating and cooling of materials.

This device delivers favorable heat‑transfer performance with compact and lightweight structure, small footprint and convenient installation. Widely applied in pharmaceutical industries for heating, cooling and evaporation of liquids or gases, it is a practical heat‑exchange device.

Heat‑exchange area: 5‑120 m²

Maximum allowable working pressure: 1.6 MPa

Maximum allowable operating temperature: ‑50 °C ~ 250 °C

Commonly used austenitic stainless steel

304(06Cr19Ni10), 304L(022Cr19Ni10), 304N(06Cr19Ni10N), 321(06Cr18Ni11Ti), 321H(07Cr19Ni11Ti), 316(06Cr17Ni12Mo2), 316H(07Cr17Ni12Mo2), 316L(022Cr17Ni12Mo2), 316LN(022Cr17Ni12Mo2N), 316Ti(06Cr17Ni12Mo2Ti), 316MOD(022Cr18Ni14Mo3), 317L(022Cr19Ni13Mo3), 347(06Cr18Ni11Nb), 347H(07Cr18Ni11Nb), 347HFG, 309S(06Cr23Ni13), 310S(06Cr25Ni20), 310HR‑3C, S30815(253MA).

Duplex stainless steel

S31803, S32205, S32750, S32760, S31500, S32001, S32003, S32304.

Hastelloy

HASTELLOY C‑276, C‑22, B‑2, B‑3, C‑2000, G‑35.

Titanium and Titanium Alloys

TA1, TA2, TA3, TA9.

Chemical composition of corrosion‑resistant alloy

N04400 Monel 400, N06600 Inconel 600, N06601 Inconel 601, N06690 Inconel 690, N08800 Incoloy 800, N08825 Incoloy 825, N08020 Alloy 20, N08810 Incoloy 800H, N08811 Incoloy 800HT, N10276 Hastelloy C‑276, N06022 Hastelloy C‑22, N06985, N06625 Inconel 625.
